Available on Premium and above plans.
If your team already models data in dbt, you can import those models into Cube as cubes instead of redefining them by hand. dbt pull connects to your dbt project’s Git repository, parses the project, converts each dbt model into a cube — including dimensions, measures, descriptions, and joins — and commits the generated files to a branch where you review them before they reach production. Pulls can run manually, from your CI/CD pipeline, or automatically on every push to your dbt repository — so your semantic layer stays in sync with dbt as it evolves.
The integration is one-directional: dbt → Cube. Cube never writes back to your dbt project. dbt stays the source of truth for how tables are transformed; Cube serves those models to BI tools, APIs, and AI agents.

​
How it works

When a pull runs — whether triggered manually, from CI, or by a repository push — Cube spins up a short-lived, isolated sandbox and:
  1. Clones your dbt repository (a shallow clone of the branch you selected).
  2. Installs your project’s dependencies (dbt deps).
  3. Parses the project (dbt parse) to produce dbt’s manifest.json — the structured description of every model, column, test, and constraint.
  4. Converts each dbt model into a cube definition (one .yml file per model).
  5. Commits the generated files to a branch for review, then tears the sandbox down.
No connection to your data warehouse is made during a pull. Cube uses dbt parse, not dbt run or dbt compile, so it reads your project’s structure without ever querying your warehouse. dbt pull generates cube definitions; it assumes the underlying tables were already built by your own production dbt run.

​
Prerequisites

  • A supported data warehouse. dbt pull supports Snowflake, Amazon Redshift, PostgreSQL, Google BigQuery, Databricks, and Amazon Athena. If your deployment uses any other database type, the pull dialog will tell you it’s unsupported.
  • A Git repository containing your dbt project, reachable over HTTPS or SSH. GitHub, GitLab, Bitbucket, Azure DevOps, and self-hosted Git servers all work.
  • Read access to that repository — either a personal access token (PAT) for HTTPS, or the ability to register a read-only deploy key for SSH.
  • For the generated cubes to return data, the dbt models must already be built into your warehouse (via your normal production dbt run) in the schema you configure below. dbt pull generates cube definitions that point at schema.<model>; it does not create the underlying tables.

​
Connect your dbt repository

The dbt connection is configured on your deployment’s default data source.
1

Open the data source settings

Go to Settings → Data Sources and edit the default data source. Expand the dbt project section.
2

Fill in the connection fields

3

Choose an authentication method

Two authentication methods are supported:
  • HTTPS + personal access token — paste a PAT with read access to the repository. Leave it unchanged on later edits to reuse the existing token.
  • SSH deploy key — Cube generates a key pair for you and shows you the public key to register as a read-only deploy key on your Git host. The private key is generated and stored server-side and never leaves Cube.
Whichever method you use, the secret is stored encrypted and resolved server-side at pull time — your Git credentials never reach the browser.

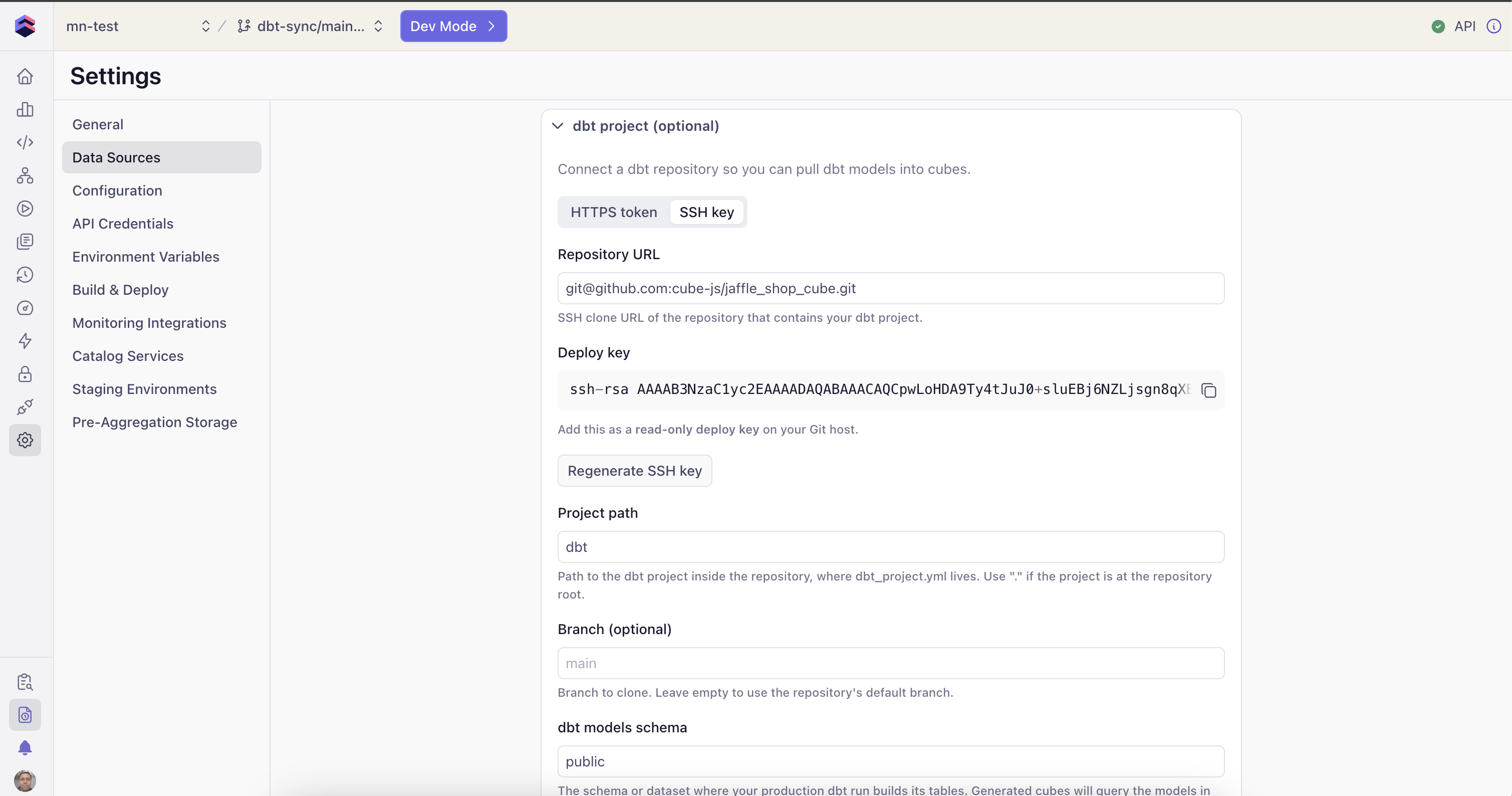

dbt project settings card with the SSH authentication method selected and the generated public deploy key
4

Test the connection

Click Test connection. Cube checks that the repository is reachable with your URL and credentials and reports the result:
  • “Repository is reachable” — you’re good to save.
  • An error message identifying the problem (invalid/expired token, repository not found, host unreachable, not a Git URL, etc.).
5

Save

Click Save dbt settings.
Saving these settings does not restart your deployment.

​
Configure pull settings

Pull options are saved on the integration itself, so every pull — manual or automated — uses the same configuration:

​
Run a pull manually

1

Enter development mode

Open the deployment’s data model page (the IDE) and enter development mode. The dbt integration is disabled outside dev mode — a manual pull lands on your dev branch, never directly on production.
2

Open the pull dialog

Open the Integrations menu → dbt → Pull. The dialog shows what will be pulled using your saved settings.
If the output path already contains files, the dialog shows a warning with the file count: a pull overwrites generated cube files and deletes files in that folder that no longer correspond to a dbt model. See Re-running a pull.
3

Start the pull

Click Start Pull. A progress toast tracks the pull and ends with “dbt pull completed (N cubes)”. The generated files appear in your file tree under the output path, on your development branch.
Review the generated cubes in the Changes view, then commit and merge the branch through your normal workflow.

​
Keep Cube in sync automatically

Automated syncs run the same pipeline as a manual pull, but instead of committing to your working branch they create a fresh review branch — so a person can approve the update before it reaches the live data model.

​
Trigger from your CI/CD pipeline

Cube exposes a REST endpoint you can call at the end of your dbt deployment pipeline, right after dbt run. As soon as your warehouse tables are rebuilt, your pipeline tells Cube to regenerate the matching cubes. The exact endpoint URL for your deployment is shown in the dbt settings card, ready to drop into a CI step.

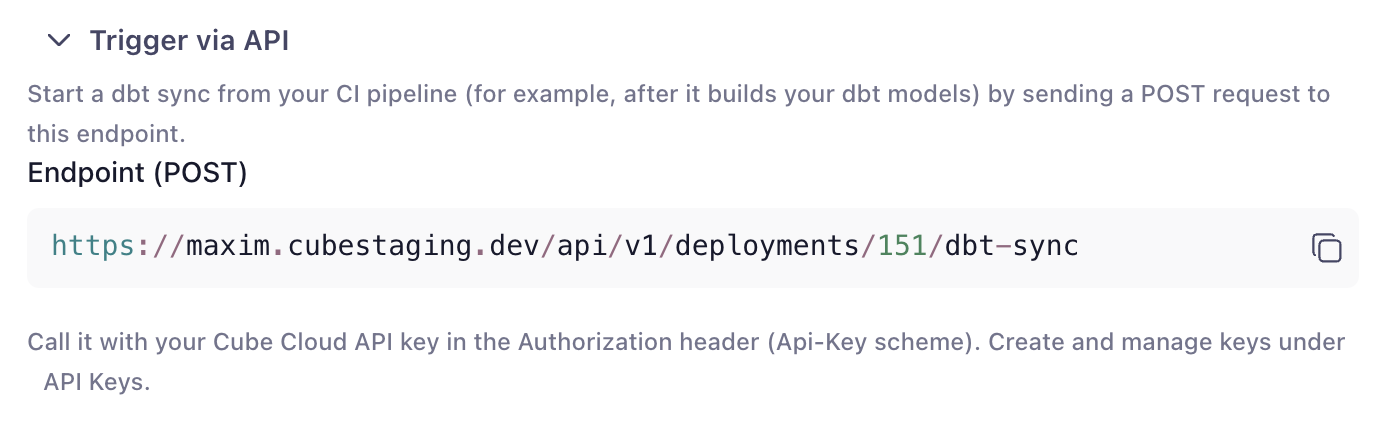

API trigger section of the dbt settings card showing the sync endpoint URL

​
Trigger on every push

Register a webhook on your dbt repository so Cube syncs automatically whenever the tracked branch is updated. In the settings card, generate a signing secret and copy the callback URL into your Git host’s webhook settings. Pushes are verified by signature, de-duplicated (redeliveries and no-op ref changes are ignored), and scoped to the branch you’re syncing.

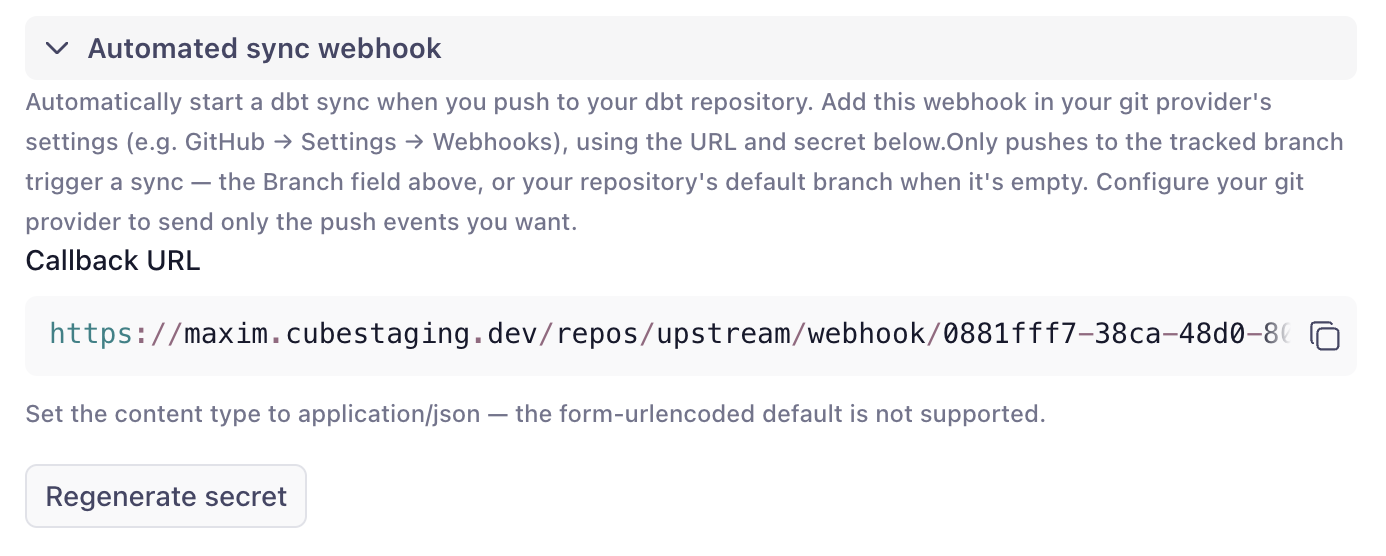

Webhook section of the dbt settings card with the signing secret and callback URL

​
Review notifications

When an automated sync produces a branch that’s ready to review, Cube emails the recipients you configure — a comma-separated list in the settings card — with a link straight to the review. No one has to poll the UI to notice that dbt changed.

​
What gets generated

dbt pull converts models, their columns, and their relationships. dbt metrics and semantic models are not imported. For each dbt model in your project:
  • One cube is created (one .yml file per model), named <name prefix><model name> with title <title prefix><model alias or name>.
  • sql_table is set to the model’s fully-qualified relation, database.schema.model (empty parts are dropped, so e.g. Postgres and Athena yield schema.model). On Databricks, the first segment is the catalog: the value of the deployment’s CUBEJS_DB_DATABRICKS_CATALOG environment variable, or hive_metastore if it isn’t set.
  • Each column becomes a dimension. The dimension type is inferred from the column’s data_type where available, otherwise from the column name:
  • Model and column descriptions from your dbt project are carried over to the cubes and dimensions.
  • A count measure is added to every cube.
  • total_<column> sum measures are added for numeric columns whose names suggest an additive metric (names containing amount, price, cost, total, or value).
  • Primary keys are detected from id / *_id columns and dbt primary_key constraints, and the matching dimensions are marked primary_key.
  • Joins between cubes are generated from dbt relationships tests and foreign-key constraints, with the relationship type (many_to_one, one_to_many, or one_to_one) inferred from the models — so the generated data model is queryable across cubes out of the box.
Models named metricflow_time_spine and any non-model resources (sources, seeds, snapshots, etc.) are skipped. Each generated file begins with a header noting that it’s auto-generated and recommending you don’t edit it by hand — see Build on top of the generated cubes for how to customize them instead.

​
Build on top of the generated cubes

Think of the resulting data model as layered. The generated cubes are the base layer, not the finished semantic layer:
  • The base layer — the cubes in the output path — is owned by the integration. It mirrors your dbt project and is regenerated on every pull, so treat it as read-only: any manual edits to these files are lost on the next sync.
  • The customization layer is everything you build on top: hand-written cubes that extends the generated ones, and views that shape what’s exposed to consumers. This layer lives outside the output path and survives every pull.
Because extends merges your definitions into the generated cube, you can add measures, joins, segments, pre-aggregations, or access control without touching the generated files:
When your dbt project changes — a column is added, a description is updated — the next pull refreshes the base layer, and your customizations automatically apply on top of the updated cubes. dbt stays the source of truth for the physical model, while the semantics you add in Cube accumulate in a layer the sync never touches.

​
Re-running a pull

Pulling again refreshes the cubes to match your current dbt project:
  • Files for models that still exist in dbt are overwritten with freshly generated definitions.
  • Files in the output path whose models are no longer in the dbt project are deleted.
  • Files in the output path that correspond to a model still present in dbt are preserved — so a scoped pull (using a model selector or “Only pull marts”) will not delete the cubes for models outside that scope.
Because generated files are overwritten, manual edits to them are lost on the next pull. Keep customizations in a separate cube that extends the generated one — see Build on top of the generated cubes.

​
Limitations

  • Supported warehouses: Snowflake, Amazon Redshift, PostgreSQL, Google BigQuery, Databricks, and Amazon Athena.
  • Imports models, columns, and relationships only — not dbt metrics, semantic models, tests, or exposures.
  • One-directional — Cube never pushes anything back to your dbt repository.
  • No warehouse connection — a pull doesn’t trigger a dbt run; it assumes your tables are already built.
  • One dbt project per deployment.

​
Troubleshooting

You’re not in development mode. Enter dev mode on the data model page — a manual pull only runs against a dev branch.
Your deployment uses a database other than Snowflake, Amazon Redshift, PostgreSQL, Google BigQuery, Databricks, or Amazon Athena. dbt pull isn’t available for it.
The dbt connection settings are missing or incomplete on the default data source. An account administrator can add them under Settings → Data Sources (see Connect your dbt repository). If you’re not an administrator, ask someone who manages the deployment to set it up.
The message identifies the cause:
  • Authentication failed — the token is invalid, expired, or lacks read access to the repository (for HTTPS), or the deploy key isn’t registered on the repository (for SSH). Generate a new read-scoped token, or register the public deploy key shown in the settings card.
  • Repository not found — check the URL; for private repos this can also mean the credential can’t see the repo.
  • Unsupported protocol — use the repository’s HTTPS or SSH clone URL.
  • Host unreachable / could not resolve host — check the URL; the host must be reachable over the public internet.
The error message describes what failed. Common causes:
  • The dbt project doesn’t exist at the configured Project path (no dbt_project.yml there).
  • A failure in the dbt project itself — the same failure you’d see running dbt locally.
Transient failures are retried automatically; persistent errors fail with a message describing the problem.
Your Model selector and/or Only pull marts filters excluded every model. The pull fails (rather than generating nothing and deleting files) and names the active filters. Adjust the selector/marts folder and try again. Confirm the selector with dbt ls --select <your selector> locally.
Check that:
  • The webhook is registered on the dbt repository with the callback URL and signing secret from the settings card.
  • The push targets the branch configured in the dbt settings — pushes to other branches are ignored.
  • The delivery isn’t a redelivery or a no-op ref change — those are de-duplicated and skipped.
dbt pull generates cube definitions that point at schema.<model>, but it doesn’t build the tables. Make sure your production dbt run has materialized the models into the dbt models schema you configured, and that the schema matches.
The sql_table is derived from your dbt project and the dbt models schema setting. Verify that dbt models schema matches where your models actually land, and that any per-model schema/database overrides in dbt are what you expect.On Databricks, the catalog segment comes from the deployment’s CUBEJS_DB_DATABRICKS_CATALOG environment variable and defaults to hive_metastore. If your models live in a Unity Catalog catalog, set CUBEJS_DB_DATABRICKS_CATALOG to that catalog so generated cubes point at it.
